APO180FL F/7

Mounted APO180FL F/7
APO180FL F/7

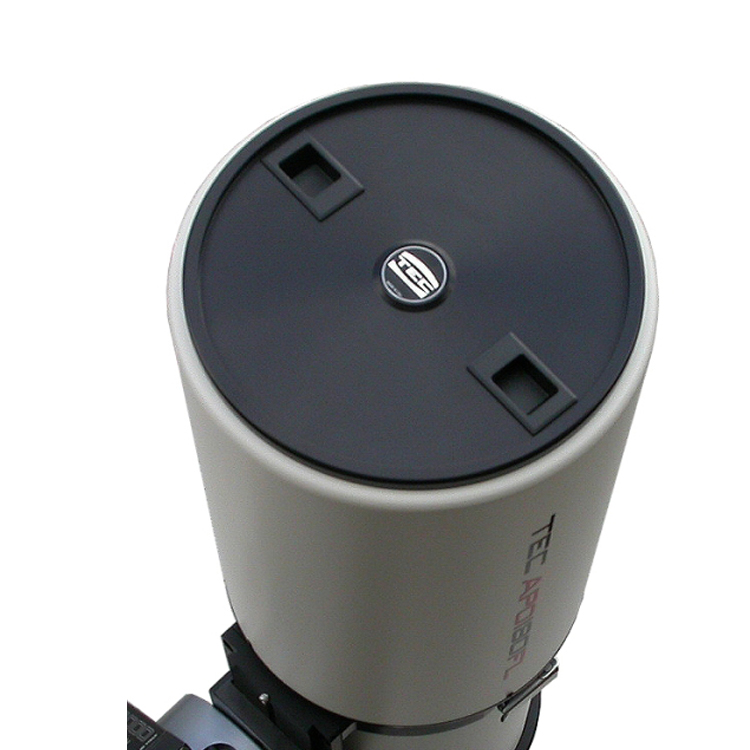

APO180FL F/7 Front View
APO180FL F/7 on the AP900GTO Mount

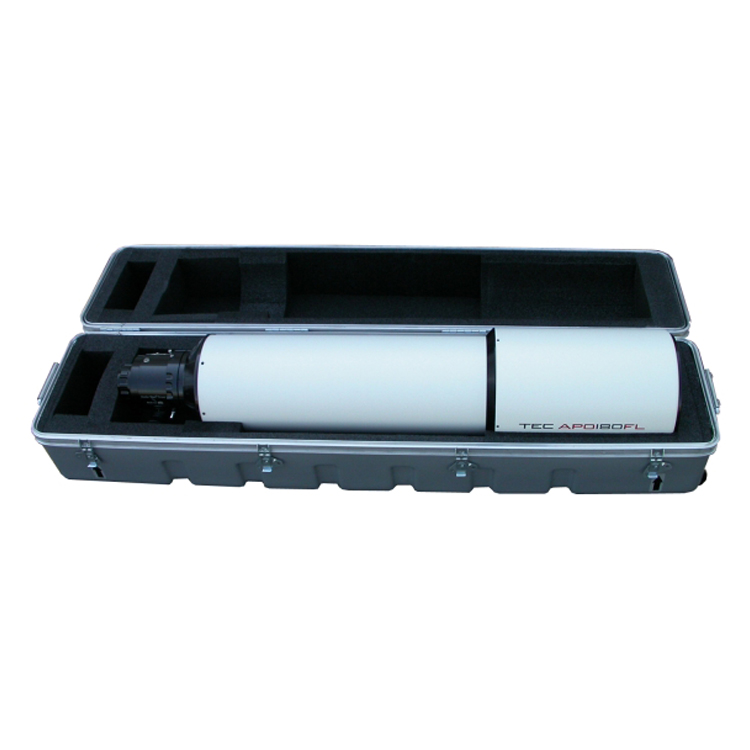

APO180FL F/7 Retracted in the 180FL Transportation Case
TEC Telescope Size Comparison APO110FL, APO140FL F/7, APO160FL F/7, APO180FL F/7, APO200FL F/7, APO250VT F/8.8, APO300VT F/10.1 (right to left)
APO180FL F/7 (left) and APO160FL F/7 (right) Size Comparison

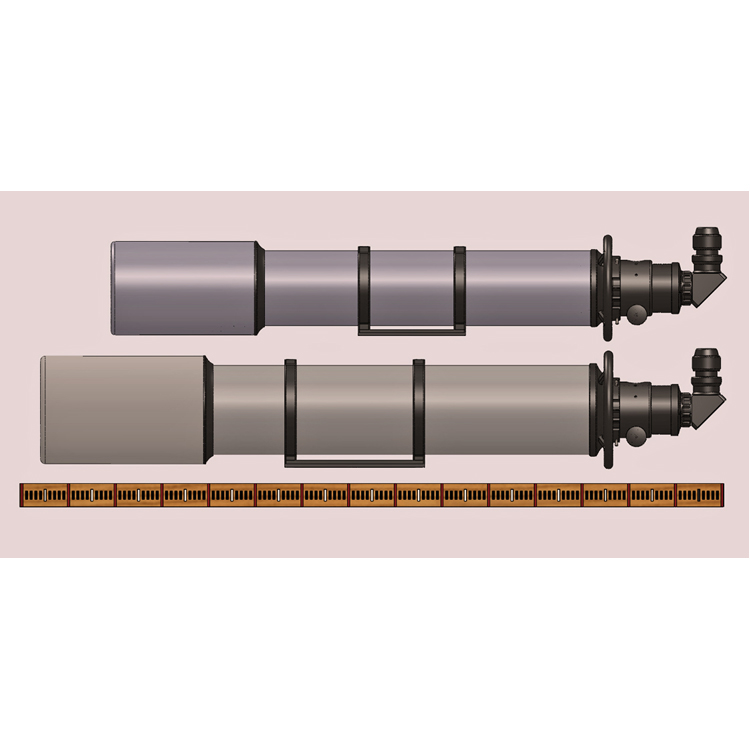

APO160FL F/7 (top) and APO180FL F/7 (bottom) Size Comparison
Image of Antares Courtesy of Tim Wetherell Taken with the APO180FL F/7

APO180FL F/7

Price : $19,000

APO180FL F/7 – Highly popular and TEC’s largest portable telescope. It fits in any car and could be lifted and installed on the mount by one person. Same excellent color correction as in APO160FL.

Clear Aperture	180 mm
Focal Length	1260 mm
Focal Ratio	7.0
Resolution (Theoretical)	0.66 arcsec

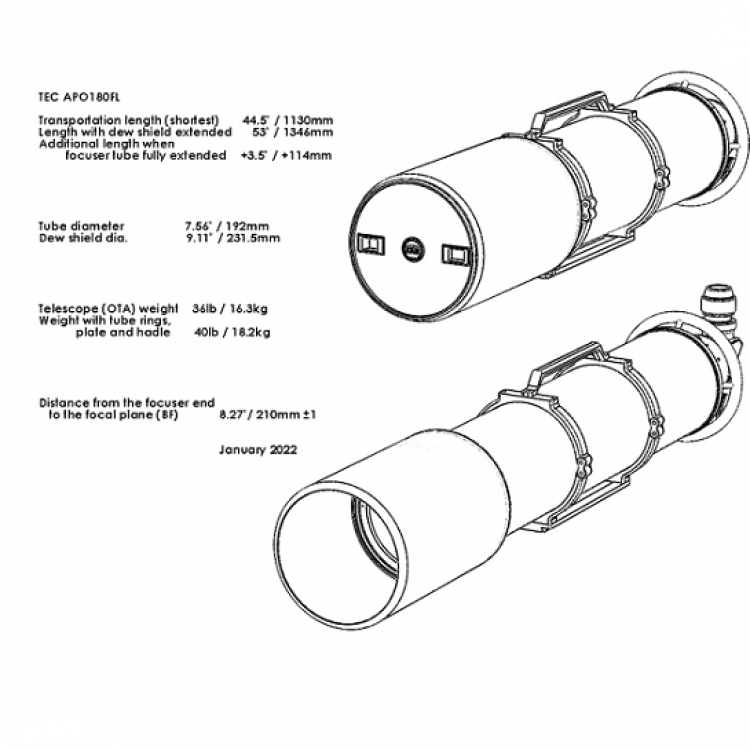

Dew Shield Diameter	9.11″ / 231.5 mm
Tube Diameter	7.56″ / 192 mm

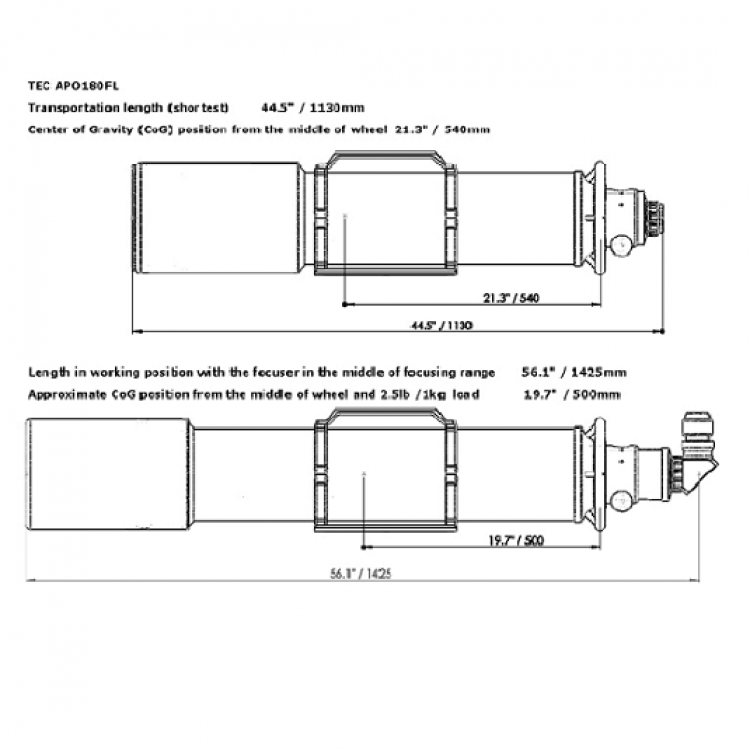

Tube Length (Retracted)	44.5″ / 1130 mm
Tube Length (Extended)	53″ / 1346 mm
Focuser Tube Fully Extended	+3.5″ / 114 mm
Length in Working Position with the Focuser in Middle of Focusing Range	56.1″ / 1425 mm
Dist. From Focuser End to Focal Plane (Back Focus)	8.27″ / 210 mm +-1
Center of Gravity from the Middle of the Wheel and 2.5 lbs / 1 kg load	19.7″ / 500 mm
Center of Gravity from the Middle of the Wheel (Telescope Retracted)	21.3″ / 540 mm
Tube weight	36.5 lb / 16.5 kg
OTA Weight with Rings, Plate, Handle	40 lbs / 18.2 kg

PDF MANUAL

Testing and Quality Assurance

TEC Telescopes go through rigorous testing to ensure top quality performance. Newtonian Rings are used throughout the glass production process and we then use an interferometer to correct any remaining imperfections. Every telescope is then tested vigorously to reach the most optimum Strehl ratio possible. Rest assured that your telescope has been optimized to be as optically perfect as possible. If the objective does not reach Yuri’s expectations, the telescope will not be shipped. As a strict policy, TEC will not release telescope test reports.

While the objectives are fine-tuned under interferomerical control to meet the highest optical standards, cosmetic imperfections may exist in the objective and the tube assembly. Please rest assured that any imperfection in the telescope has been determined not to affect the optical performance.

DESCRIPTION

Our largest portable refractor, the APO180FL F/7 allows the observer to delve deep into the beauty of space.

The APO180FL F/7 features an oil-spaced apochromatic-triplet objective with a Fluorite (CaF₂) middle element, resulting in color correction that is optimized for visual use and imaging. This oil-spaced triplet design in combination with multi-layer coatings on all surfaces of the objective ensure maximal light transmission.
The objective is housed in an aluminum cell, providing for excellent thermoregulation properties while remaining lightweight and strong.
The optical assembly sits in a lightweight aluminum tube that utilizes anti-reflective coating and sharp-edged baffles throughout the interior and forget about collimation – after the scope leaves TEC, no adjustment is required.
Further, the crisp all white assembly projects the elegant, handcrafted quality that TEC is known for. Expect deep contrast and rich, natural color out of this compact and timeless design.
Each APO180FL F/7 comes equipped with a Starlight Instruments FTF#3545 Feather Touch Focuser that was designed in collaboration with TEC. This is Starlight Instruments’ largest rotating focuser with coarse and fine focusing 9:1 Planetary Reduction Assembly.
- The APO180FL F/7 can be fitted with to other focuser models by request. Please contact TEC to confirm whether the desired focuser will fit with the desired TEC model.
The 2” locking metal collet is insensitive to temperature fluctuations and holds loads with high precision and concentricity.
It also comes equipped with a Focuser wheel for easy mount installation and direction.
Available for purchase as a Binocular Telescope. This requires the purchase of 2 APO180FL F/7.
Able to accommodate a wide variety of eyepieces and mounts. TEC recommends the 10Micron GM2000 HPS and AZ2000 HPS Mounts, and the Astr0-Physics 1100GTO Mount.
Available to view in person at the Company 7 Showroom in Maryland, USA.

In classic refractor fashion, the TEC APO180FL F/7 is a no compromise, no frills design that lets the wonders of nature speak for themselves. The TEC APO180FL F/7 costs $19,000, including an initial $6,000 refundable deposit. Please know that ALL PRICES AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE; the price initially quoted for a telescope purchase may not be reflected in the final invoice. Wait times may also be longer than initially quoted. Rest assured that we are working diligently to complete and ship every telescope on order.

Recommended Accessories;

12” Dovetail Plate and Carry Handle facilitate easy transportation and fit seamlessly with most mounts. The larger size fits effortlessly with our larger models.
Precision adjustable Tube Rings.
Focal Reducer Corrector converts the F/7 Ratio to F/6.2 with a 115mm back focus.
10×60 Baader Vario Finderscope with a TEC Finder Bracket and Base for Telescope mounting.
7×50 Vixen Finderscope with a TEC Finder Bracket and Base for Telescope mounting.
TEC Eyepiece Turret for quick exchange of eyepieces depending on the target.
Gutekunst Compact Atmospheric Dispersion Corrector (ADC) and adapter set for horizon planetary viewing.
